CNC 1610 GRBL Control Diy mini 3 Axis Router Machine Engraver PCB PVC Milling Wood Carving working area 16x10.5x3cm

DIY Mini 3 Axis CNC Router Engraver PCB PVC Milling Wood Carving Machine DIY M
  • Seller Milling Grandmaster Store
  • List Price US $319.60piece
  • Sale Price US $159.80piece
  • Shipping Free Shipping
  • You Save US $159.80piece50% off
  • Ratings 5.0 (15)

Item Specifics

Brand NameWOLIKE
ConditionNew
TypeHorizontal
CNC or NotCNC

Product Description

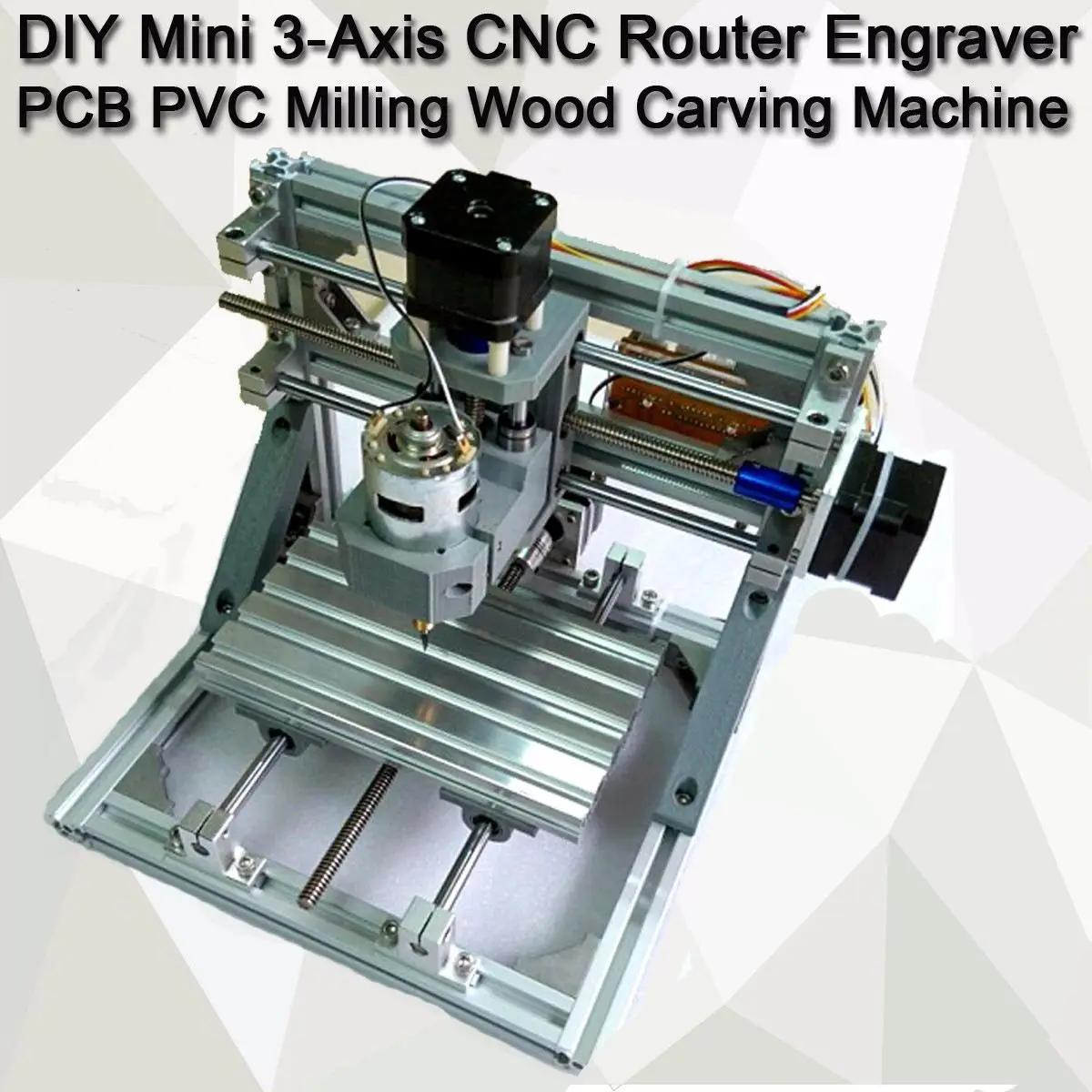

Name:DIY Mini 3-Axis CNC Router Engraver PCB PVC Milling Wood Carving Machine
This DIY desktop engraving machine is ideal for amateur
engraving usage with grayscale printing,low-light positioning and freedom
positioning functions.It only need you to connect it to the computer,then you can
print any pictures your like with your own creativity.
Model:490680
Specifications
Material:stainless steel and acrylic
Size: 260 x 240 x 220mm
Stroke: 160 x 105 x 30mm
Screw: Professional T8 screw, lead 4mm, double copper nuts eliminating backlash
Stepper motor: 12V, 1.3A, 2.1Ω, 0.25N.m
Spindle: 12-36V 7000r / min
Power: stepper motor (12V 3A), the spindle (24V 5A)
Countertops: 100X180mm
Software: GRBL controller, usb port
Support system: WIN7/8/10/XP, Linux
Engraving Material Note
1.can engraving materials:wood,bamboo,plastic,paper,leather,bank card,rubber
2.can not engraving material:metal,stone,ceramic,shell,light-reflecting material,
transparent material
Cutting Material
It can only cut foam,paper,thin leather material.
Note:
!In the process of using, please wear professional protective glasses
!Forbid children to play
!Suggested that the laser light in the case of , the power is too strong, do not use strong
light to illuminate the skin
!Avoid the use of flammable objects or gases in order to avoid causing a fire or explosion
Package include:
1 x Set of Mini engraving machine
