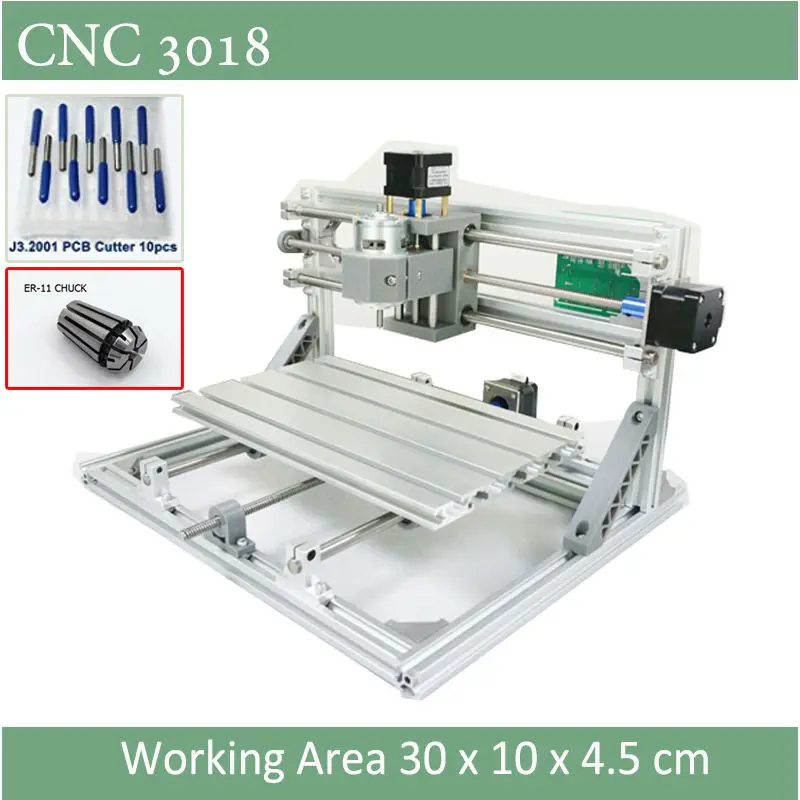

CNC 3018 Engraver with ER11 Chuck With Laser Option of 500mw 2500mw 5500 mw For Pcb Milling Wood Soft Metal Engraving

Mini CNC 3018 Machine with Alternative laser Selection for engraving Pcb Milling wood router

working area 300x180x45mm​

For HOBBIST ARTIST & CRAFT MAKER D.I.Y & RESEARCH

Introduction

- JFT Mini CNC 3018 desktop CNC engraver, designed for hobbist, artist and craft maker\'s joyful use.

- Laser life time 2500 hours, recommended each time to use for 3-4 hours then 15 minutes break.

- The package includes all the necessary parts for you to Do It Yourself to assemble THE MACHINE.

- Applications as jewelry, automobiles, communication products, IC etc.

- WATCH IT! This product NOT for industrial level production, LOOK AT other in our store, WE DO have for you.

- It uses high-speed scanning , can perform high precision scanning.

- Being fast, stable and support long-term continuous work.

- Installation is simple, all marking process managed by computer, amendment being easy per software.

Item Specifications

Model	JFT-CNC3018ER11
Working Area	300 x 180 x 45mm
Machine Size	360 x 280 x 220 (Motors Exclusive)
Software	Grbl 0.9j
Supported Windows Versions	XP, WIN 7
Supported Graphical Format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Drill Bits:	Diameter 3.17 mm, Tip 0.1mm; Length 30mm, 20 Degree
Operating Voltage	110V / 220V
Interface	USB
Screw	Stainless Steel Lead Screw Diameter 8mm
Stepper Motors	3pc Two-Phase Step Motor 1.3A 0.25Nm
Power Consumed	24V 5.6A Power Adapter
Frame	3040 Profile
Table	3040 Profile (300x180)

Product Package

Product Comes In Parts in 3 Layers , requires you to perform your D.I.Y
Layer 01
Layer 02
Layer 03
ASSEMBLY GUIDE

T8 T-Screw Stainless Steel Lead Screw Diamter 8mm
Brand New High Quality Motor
Laser Spindle with Diameter of 45 mm
Drill Bits: Diameter 3.175mm tip: 0.1 mm angle: 20.c
EU Adapter

Laser Options

POWER: 500mW Life time: 2000-5000 Hours It\'s recommended that machine is used for 3-4 hours each time, then take a break of 15 minutes
POWER: 2500mw Life time: 2000-5000 Hours It\'s recommended that machine is used for 3-4 hours each time, then take a break of 15 minutes
POWER: 5500mw Life time: 2000-5000 Hours It\'s recommended that machine is used for 3-4 hours each time, then take a break of 15 minutes

ER11 Chuck

Material To GO

With the Metal Drills from Package, the engraver can engave on Soft Metal
PCB Board	ACRYLIC
Plastics	WOOD

Application Software: GRBL CONTROLLER
